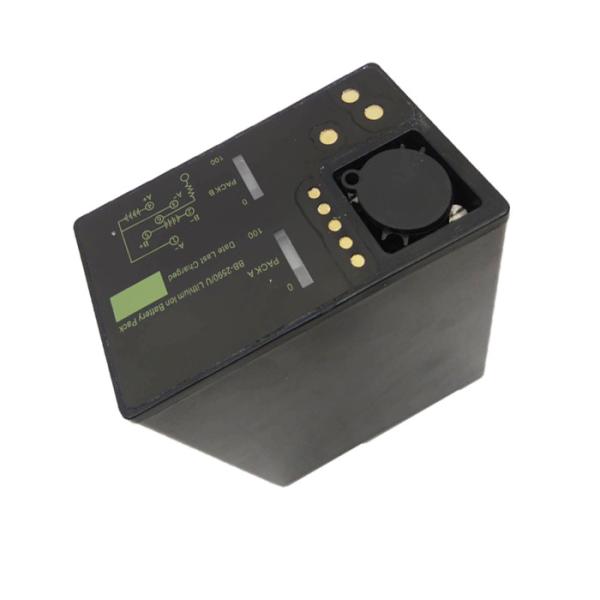

military Ultralife UBBL02 BB-2590/U mission-critical rechargeable battery systems with Widened charge temperature range was appliled to some extreme weather condition for army ,this extreme charge range of BB2590/U battery was designed for high power military lithium battery bb2590 and ultra-low temperature requirements up to -40°C performance. Typically used in over 71 different devices such as Communications gear (SINCGARS, AN/PRC-117, etc.), Robots, and Jammers.Complies with SMBus v1.1 and SBData v1.1.
1. This is high performance rechargeable Lithium Ion battery with instantaneous start up.
2. Dual state of charge [gas gauge" LCD displays.
3. Durable high impact plastic housing and connector enclosure
4. High capacity, performance verified, hermetically sealed, lithium-ion cells.
5. Protection against short circuit and improper charge.
6. High reliability due to all welded Construction.
7. Unit contains safety vented cells
8. 100% final testing
9. Replacement for: BB-390A/U, BB-590/U
NSN: 6140-01-554-2347
BB-390B/U battery , BB-490/U battery , BA-5590/U battery ,BA-5390/U battery , BA-5290/U battery , BA-3590/U battery , and variants.
| NO. | Items | specification |
| 1 | Average Voltage | Typical: 14.4V or 28.8V Final:10.0V or 20.0V |
| 2 | Nominal Capacity | 14.4V Mode: 15.0Ah @ 1.0A to10V at 23 ℃ |
| 28.8V Mode: 7.5Ah @ 1.0A to 20V at 23 ℃ |
| 3 | Max Discharge | 4.0 A continuous in 28.8V Mode |
| | 8.0 A continuous in 14.4V Mode |
| 4 | Pulse Capability | (5 seconds): Up to 18A continuous in 28.8V Mode |
| 5 | Weight | About 1500 grams |
| 6 | Dimensions (H-L-W) | 127*112*63mm |
| 7 | Operating Temp | -20 ℃ to +60℃ |
| 8 | Storage Temp | -20 ℃ to +60℃ |
| 9 | Exterior/Housing | Hard Plastic Case |
| 10 | Terminals/Connector | 6 pin polarized socked |
FEATURES:
--- Dual modes: 15V or 30V
--- High energy density
--- LCD Displays
--- Light weight
--- 5-year shelf life
--- SMBUS data communication
--- Safe: non-pressurized system
APPLICATIONS:
--- PRC-104, PRC-119
--- PRC-138, KY-57
--- Other equipment
